1635646682 Air Oil Separator Coalescing Element for Rotary Screw Air Compressor

Product Introduction

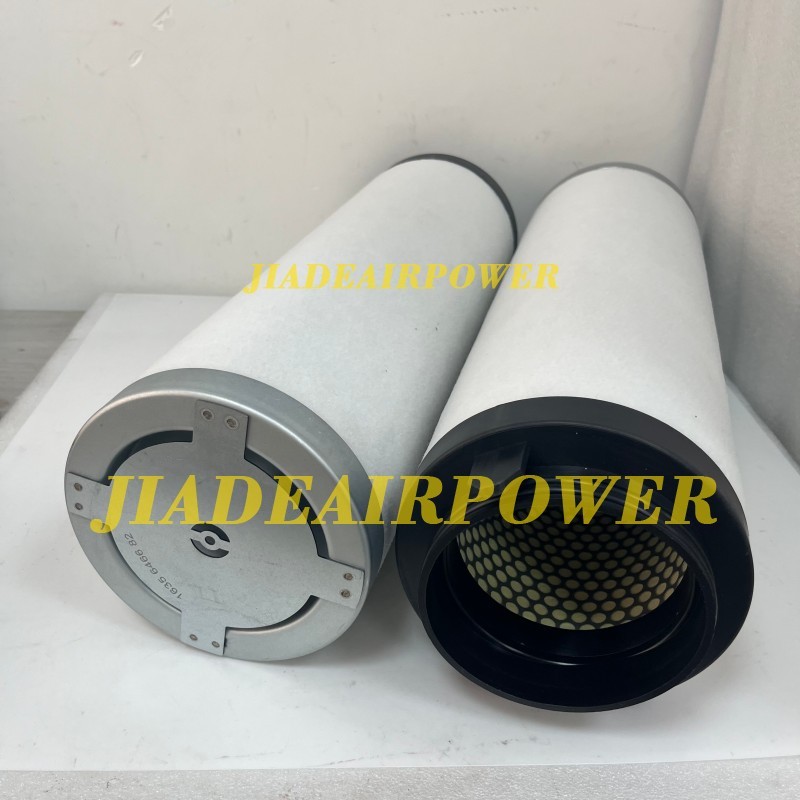

Pulls oil mist out of compressed air before it leaves the separator tank. 1635646682 is listed as an air oil separator element for oil-injected rotary screw compressors. Oily compressed air passes through the coalescing media, fine droplets merge and drain back to the lube circuit, clean air exits the core. Low oil carry-over and stable differential pressure protect downstream filters, dryers, and pneumatic equipment.

Overdue change raises running cost. As the media loads, DP climbs and oil loss increases. Change on the service interval or at the DP alarm; running past limit risks higher power draw, oily discharge, and element collapse.

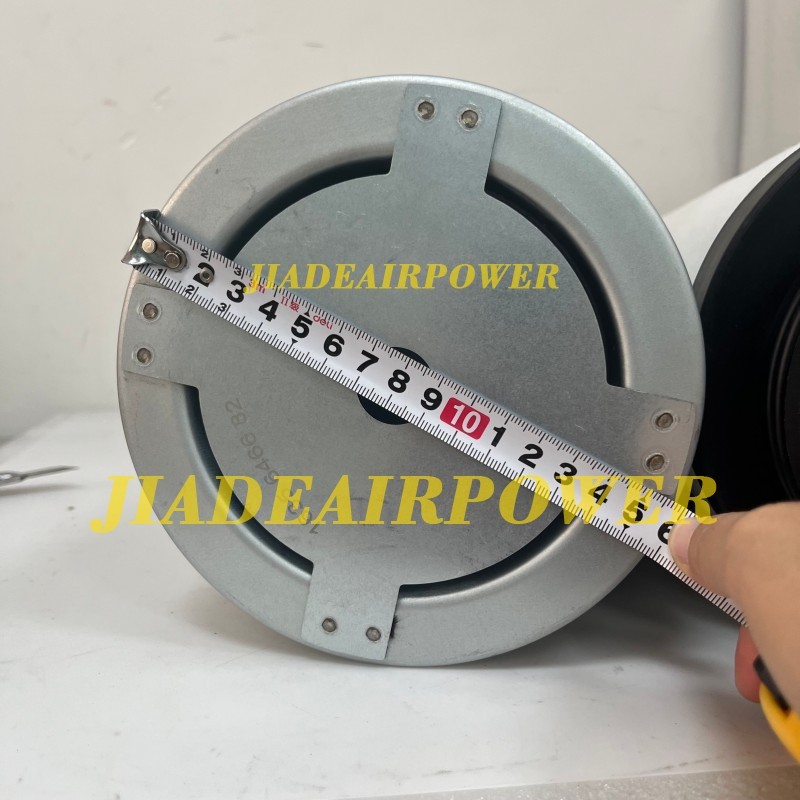

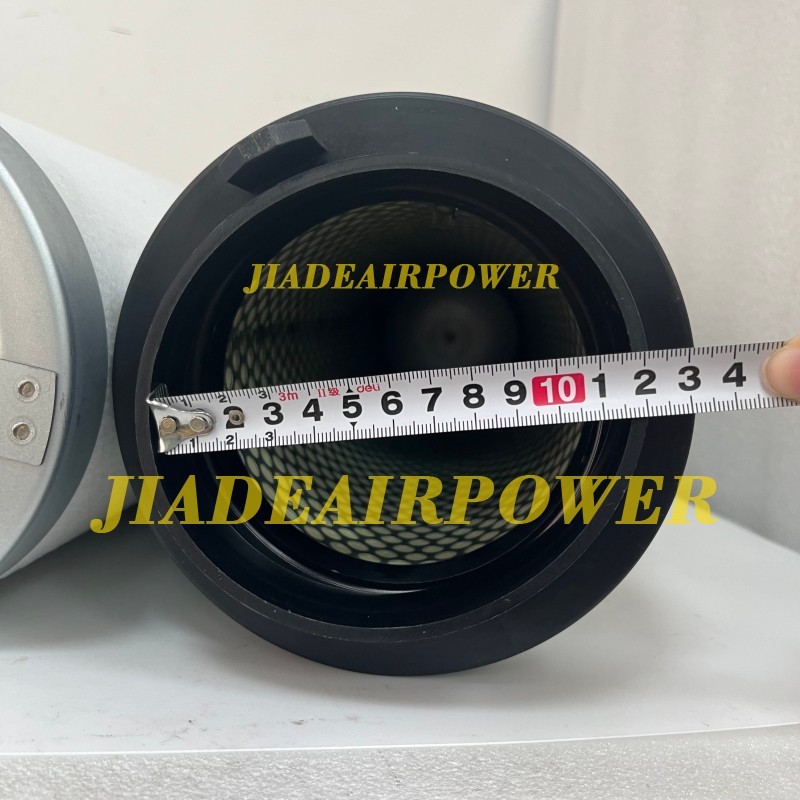

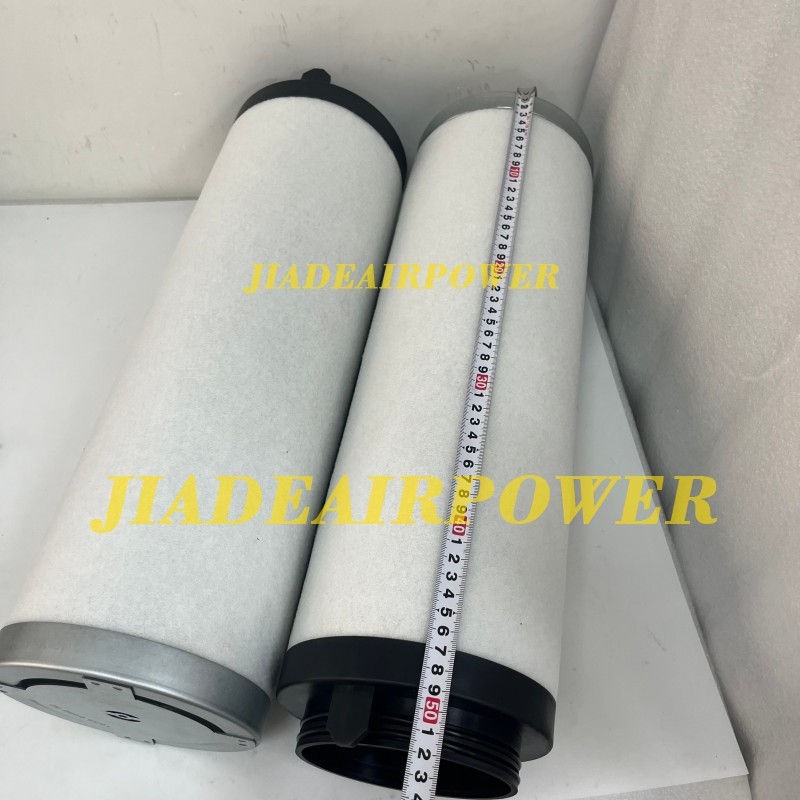

Match the physical build, not the number alone. Verify overall size, seal flange, central return tube, scavenge line position, and anti-static grounding against the removed element. Also called air oil separator, oil gas separator, coalescing separator cartridge.
