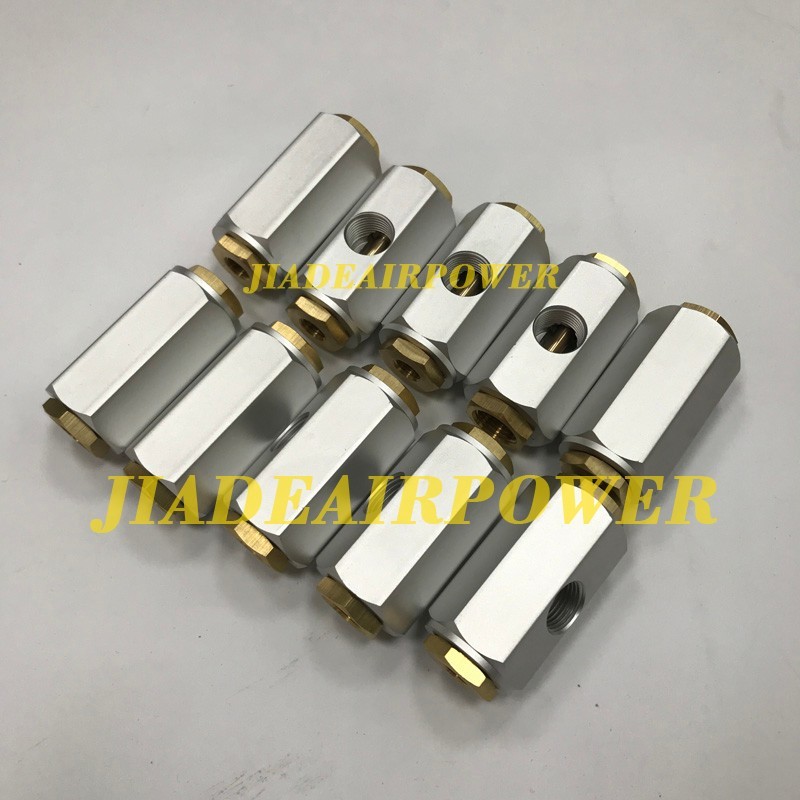

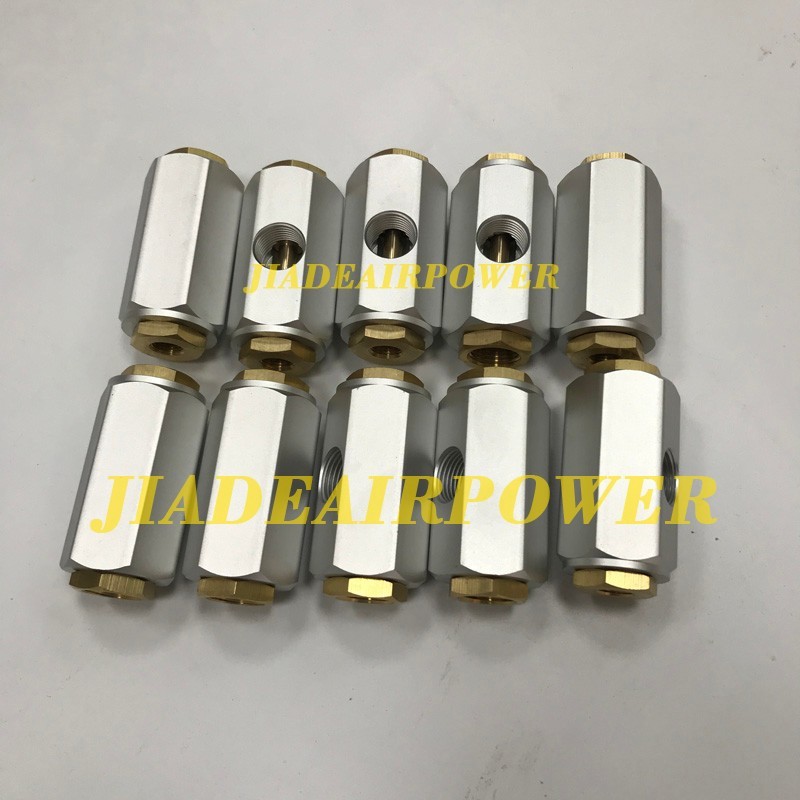

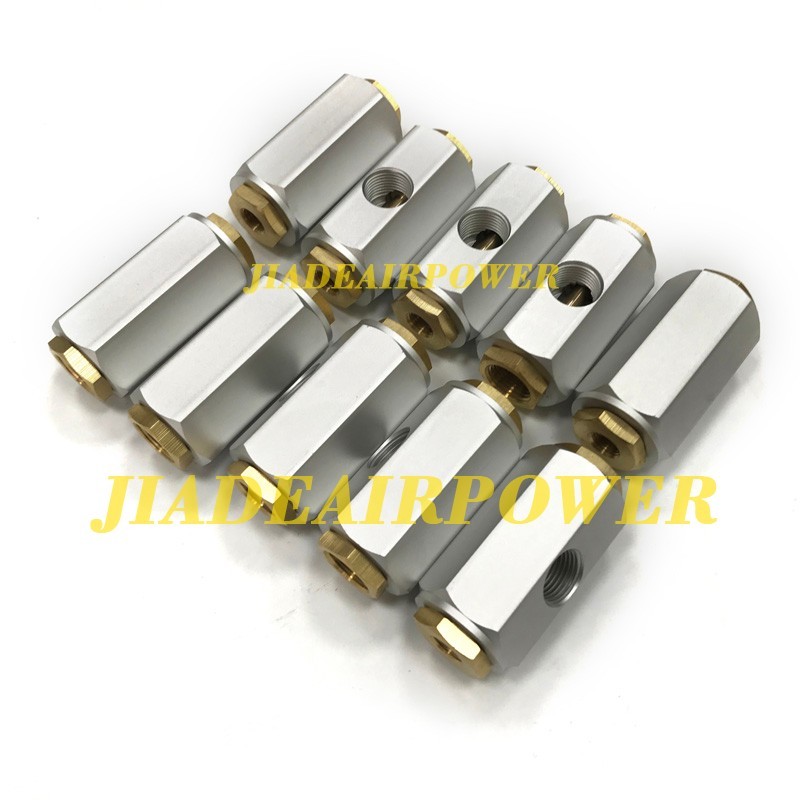

Blowdown Valve Atmospheric Valve 02250100-042 Air Compressor Part

Part Number: 02250100-042

Product Name: Blowdown Valve / Atmospheric Valve

Fit for: Sullair LS Series Screw Air Compressor

Description

02250100-042 blowdown valve is original large size pressure relief valve for Sullair LS stationary screw air compressors. It is installed on oil separator tank pipeline. When the compressor unloads or shuts down, the valve opens automatically to exhaust trapped pressure inside separator tank. It ensures no-load restart and prevents motor overload caused by residual pressure. The updated replacement part is 02250100-634, which can directly replace this old version 02250100-042.

Key Features

1. Aluminum alloy valve body with brass threaded connector, good oil & gas corrosion resistance
2. Built-in spring spool structure, fast pressure vent response
3. Threaded connection, direct OEM replacement, easy installation
4. Anti-vibration, suitable for long-time continuous operation of stationary air compressor
5. Note: Not interchangeable with small blowdown valve 02250049-634 and portable machine valve 02250069-820
