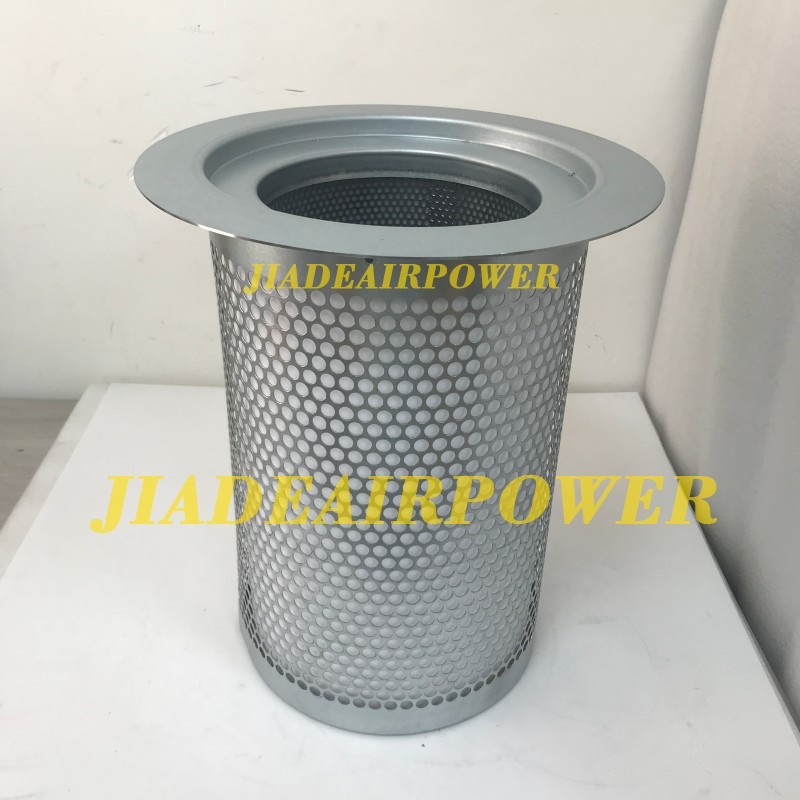

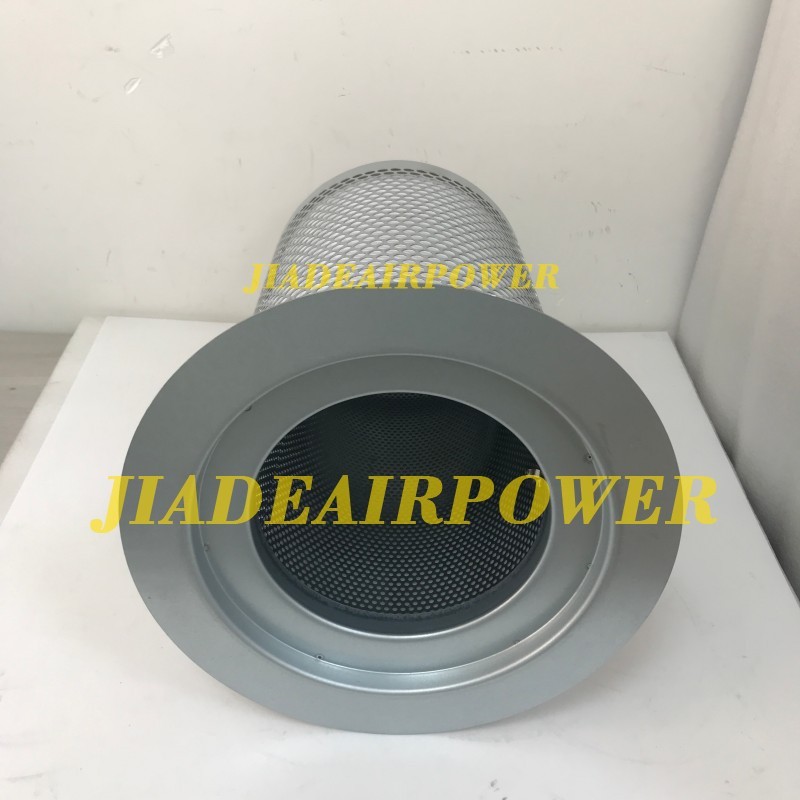

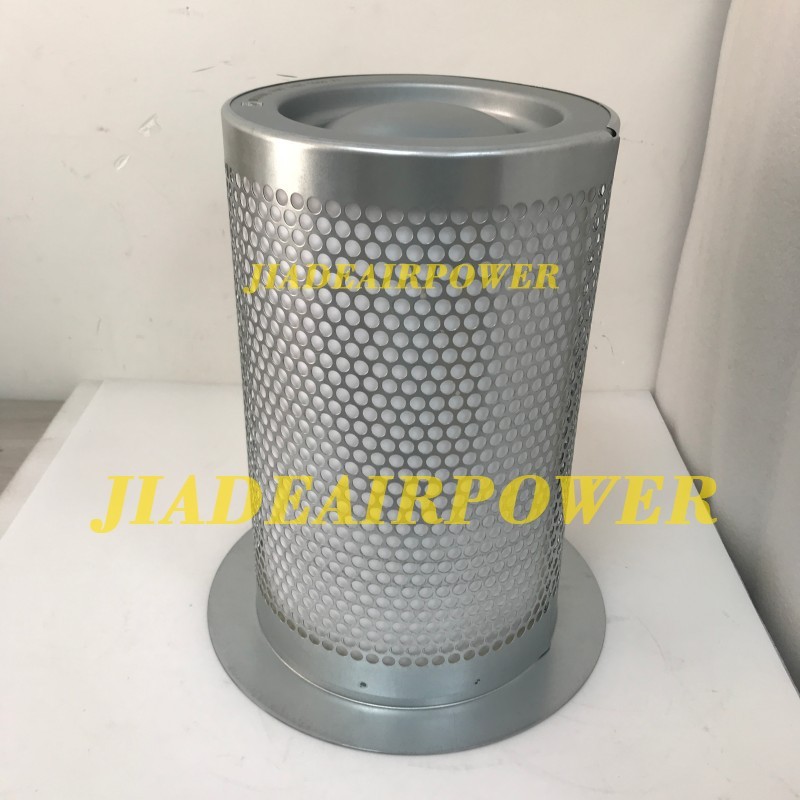

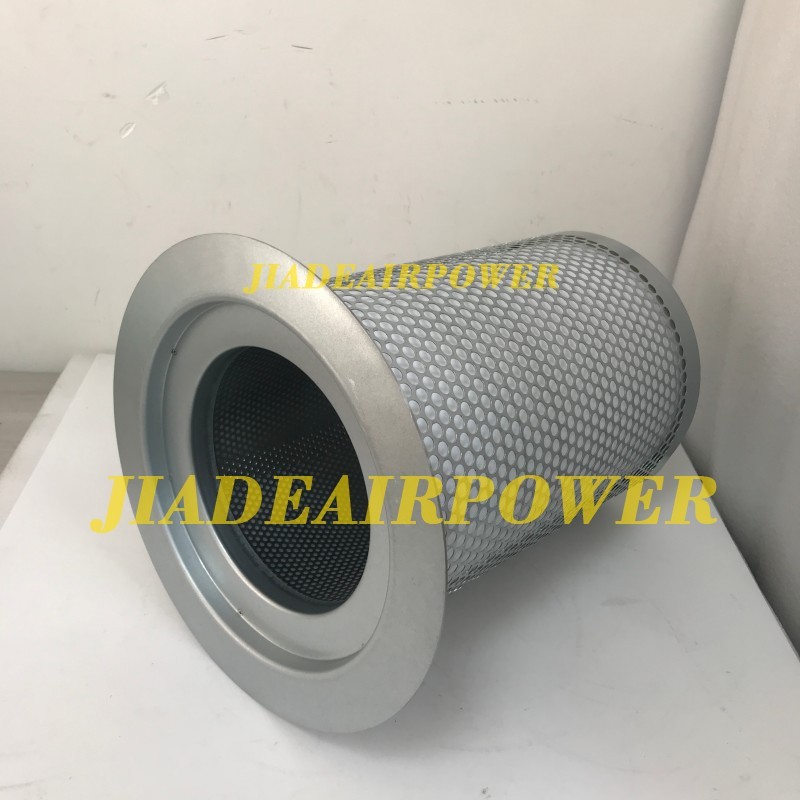

1625106671 Air Oil Separator Coalescing Element for Rotary Screw Air Compressor

Product Introduction

High-efficiency oil mist removal at the separator tank. 1625106671 is listed across supplier catalogs as an air oil separator / oil-air separation filter for oil-injected rotary screw compressors. Oil-laden discharge air hits the coalescing media, fine droplets collect and drain back to the sump, and clean air leaves the inner core. Low residual oil and stable differential pressure are what protect downstream filters, dryers, and tools.

Running it overdue costs more than the element. As the media loads, DP climbs and oil carry-over rises; ignore it and you get higher power draw, oily aftercooler discharge, faster oil consumption, and risk of element collapse. Change on the service schedule or at the DP alarm, not by guesswork.

Match the physical build before ordering. Dimensions, flange seal, central return tube, and anti-static grounding vary between listings—verify against the removed element and machine tag. Also called air oil separator, oil gas separator, coalescing separator cartridge.
